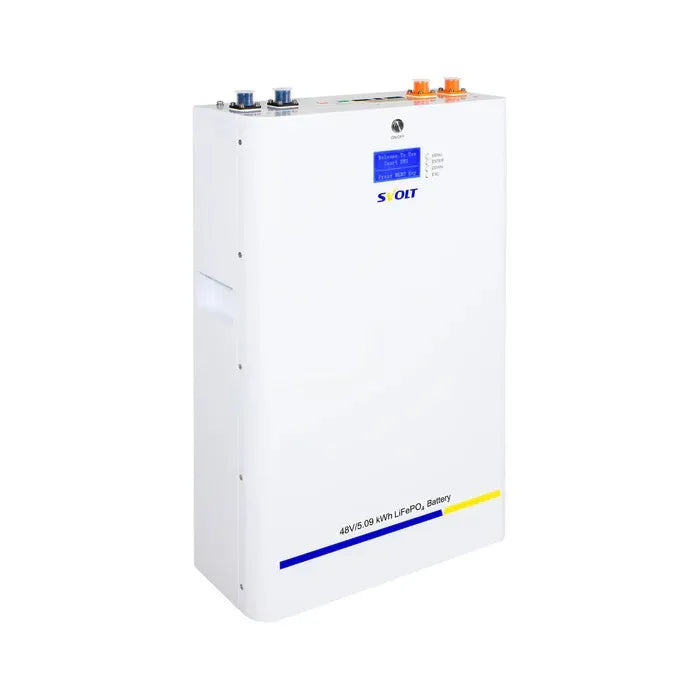

The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use.
Specifications :
Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Dimensions(LxWxH) :688 x 447 x 211mm
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency – round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20° C to 65°
Storage Temperature :0C to 50° C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.6±0.20V
Recommend Charge current:58.4±0.20V
Max Discharging Voltage:43.2±0.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A
Features :
Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
A-Grade lithium battery cells for superior performance and reliability
Designed for environmentally sensitive areas and committed to recycling
Widely used in industrial, residential, commercial, and private applications
Maintenance-free construction for convenience
Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
Built-in Battery Management System (BMS) for efficient monitoring and protection
High energy efficiency with a round trip efficiency of 99%
Low self-discharge rate of less than 3% per month
Compact and lightweight design for easy handling
Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
Wide temperature range of operation and storage
Warranty: 5 years
What’s In the Box :
1 x SVOLT 48V 106Ah 5.09kw A-Grade Lithium Battery
