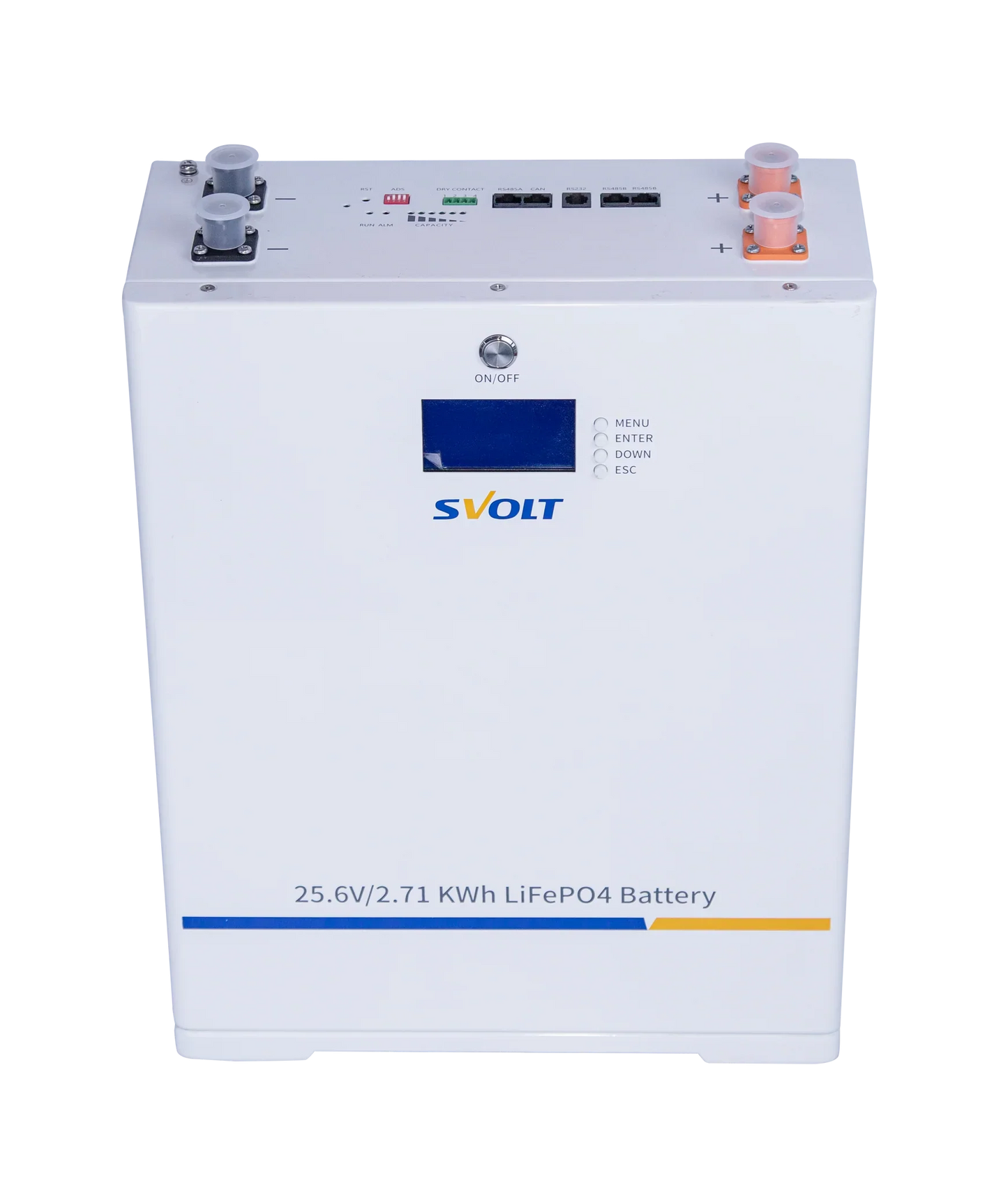

The SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery is a high-quality product from the world-leading manufacturer SVOLT, renowned for its commitment to excellence and sustainability. Utilizing top-of-the-line A-Grade Battery cells, this battery delivers superior performance, increased capacity, and unmatched reliability. Its state-of-the-art high-power A-Grade cell technology makes it an ideal choice for environmentally sensitive areas, reflecting its dedication to recycling and environmental friendliness.
Specifications And Product features of the SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery:
Key Features:
A-Grade Cell Technology for superior performance
Maintenance-free and eco-friendly design
Suitable for a wide variety of markets and renewable energy applications
Comes with 7 protection features for added safety
Built-in Battery Management System (BMS) for optimized performance
Mountable design for ease of installation
Backed by a 5-year warranty for peace of mind
Battery Specifications:
Energy: 2.71kWh
Battery Type-Chemistry: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6Wh
Terminal Type: Fast Plug In & Plug Out
Case Material: SPCC
BMS Built-in: Yes
LCD Screen for easy monitoring
High efficiency with a round trip efficiency of >99%
Self-discharge per month
Maximum Parallel Connectors: 16Pcs
Series Connections: Not Allowed
Cycle Life (0.2C, 25°C @ 80% DOD): >6000 Cycles
Wide temperature range for operation and storage
Voltage Window: 21.6V – 29.2V
Recommended Charge Voltage: 28.8±0.20V
Max Charge Voltage: 29.2±0.20V
Recommended Charge Current: 50A
Max Continuous Charge Current: 100A
Recommended Discharge Voltage: 22.4±0.20V
Max Discharging Voltage: 21.6±0.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 150A
Dimensions: 47cm (L) x 35cm (W) x 15.5cm (H)
Weight: 28kg
BMS Characteristics:
Equipped with Primary and Secondary Charging and Discharging Protection features
Over Charge Voltage Protection to ensure battery safety
Temperature Protection for optimal performance
Communication Ports for efficient data exchange (Major RS485, RS232, CAN, Dryport)
What’s in the box:
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
5 Years Warranty
Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
