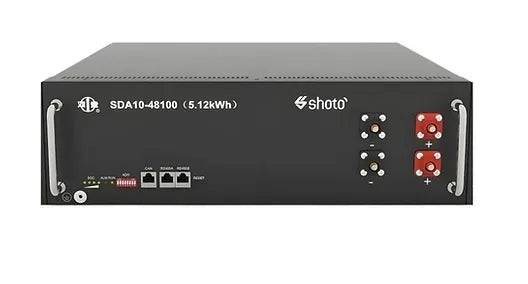

Shoto 5.12kW Lithium Ion Battery (5.12-100ah)

General Data
• Model: 51.2-100 16 Cell
• Warranty : See attached warranty document in Important Documents
• Nominal Capacity (kWh): 5.12
• Rated capacity: 100AH
• Operating voltage range: 42V to 57.6V
• Boost Charge / Float Charge Voltage: 57.6V / 54V
• Depth of Charge: 90%
• Usable Capacity (kWh): 4.6
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Nominal Voltage: 51.2V
• Maximum Parallel Units: 16
• Communication Port: RS485 & CANBUS
• Cycle Life: ≥5000 @ 25°C
• Humidity: 5%-95%
• Altitude: ≤ 4000m
• Certificate: TUV(IEC 62619)/CE-EMC/UN38.3
• Installation Method: Rack Mount / Wall Mount
• Terminal Stud: M8

Charge / Discharge Current
• Max 100A (1C)
• Recommended 50A (0.5C)

Rated Operating Temperature
• Charge -5°C to +45°C
• Discharge -20°C to +50°C

Recommended Operating Temperature
• Charge +15°C to 35°C
• Discharge +15°C to +35°C
• Storage -20°C to +35°C

Compatible Inverters
• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
