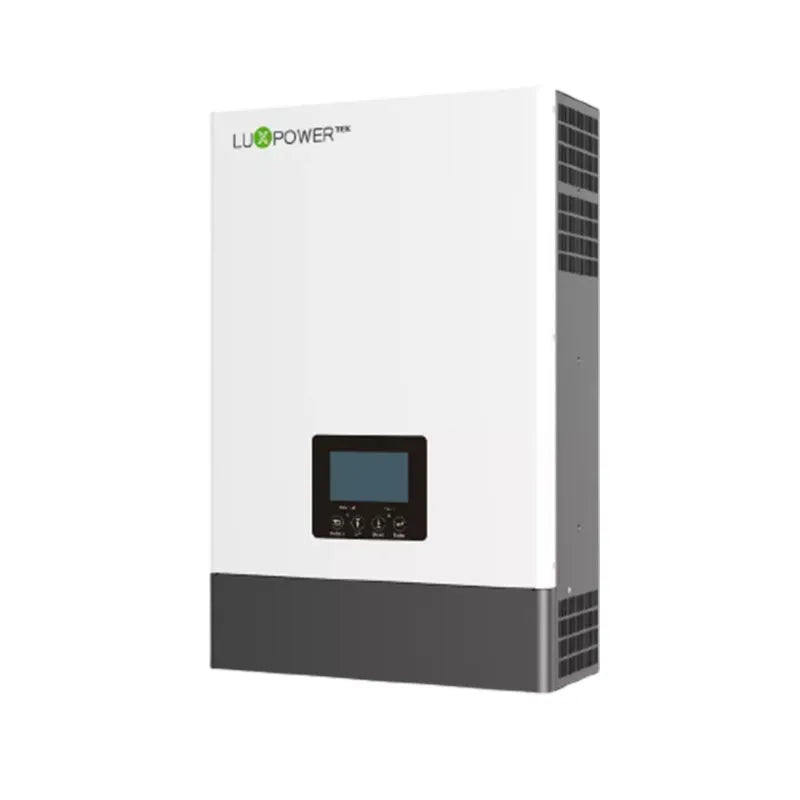

– Model: SNA 5000 WPV – Battery voltage: 48VDC – Wifi Remote Monitoring – Flexible Working Modes with settable charge and load power supply priority – Supports Solar and AC hybrid load
– Includes Wifi Dongle
Inverter Output
– Waveform: Pure Sine-Wave. – Rated Power: 5000VA/5000W. – Parallel Capability: Yes, 9 units. – AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz. -Surge Power: 10000VA. – Efficiency (Peak): 93%. – Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
– Maximum PV Array Power: 6000W. – 2 MPPT Controllers – MPPT Range @ Operating Voltage: 100VDC ~385 VDC. – Maximum PV Array Open Circuit Voltage: 480VDC. – Maximum Efficiency: 98%. -Maximum Solar Charge Current: 100A.
AC Charger
– Charge Current: 60A. – AC Input Voltage: 230 VAC. – Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances). – Frequency Range: 50Hz/60Hz (Auto sensing)
Built in BMS (Battery management System)
– BMS Compatible with – Pylon – Dyness – BYD – Shoto – Revov – UZ Energy
