The BL5.0 Kodak battery is a high performance, 4.94kWh, scalable battery module perfect for expanding systems. A single BL5.0 battery module allows up to 7500W of continuous discharge power. This means only one BL5.0 battery module is required for a 5-8kW inverter or only two required for a 15kW inverter.
1.5 C industry leading discharge C- rating allows single battery deployments for 7+kW inverter systems
4.94 kWhrs capable of 15 units in parallel totaling 74.1 kWhrs
RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
Industry leading 95% DOD allowing for more useable capacity from the battery
10 year standard warranty
Cycle life depends on DoD set via inverter.
80% DoD @ 25°C = 6000+ cycles.
Up to 95% DoD @ 25°C = 3600+ cycles.
Weight:51 kg
Battery Type: Lithium Ion
Nominal Energy:4940 Wh
Depth of discharge:95.00 %
Voltage:48 V
Continuous Discharge Rate (Normal Use):7500 W
Maximum Discharge Rate (5 Minutes):7600 W
Surge Discharge Rate (15 Seconds):8000 W
Maximum Charge Rate (5 Minutes):2560 W
Warranty:10 years warranty, > 6000 cycles life

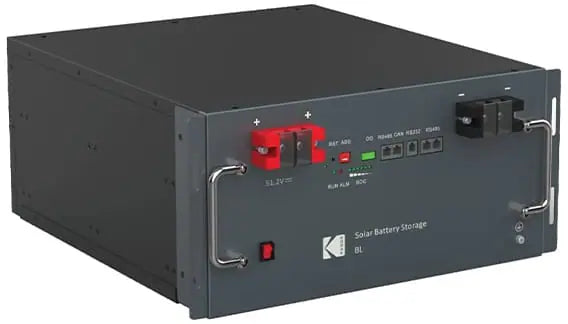

KODAK Solar Battery Storage BL5.0
Discharge Current 150A (1.5C)
Over voltage protection
Under voltage protection
Short-circuit protection
High/low temperature charge protection
High/low temperature discharge protection
Charge/discharge over-current protection
Dormancy function
RS232/RS485/CAN communication
Basic Parameters
Rated Power: 7500W
Parallel Capability: Up to 15 units
Rated Voltage: 51.2V/96.6Ah
Nominal capacity: 4.945kWh
Physical
Dimension, D x W x H (mm): 220.6 x 438 x 536
Net Weight (kgs):50kg
Communication Interface: RS232/RS485/CAN
Electrical Parameters
Charge mode: CC/CV/CP
Charging current: 50A（0.5C @25℃, recommended）
Charging cut-off voltage: 58.4V(3650mV for cell)
Discharge mode: CC/CP
Discharging cut-off voltage: 40.0V(2500mV for cell)
Discharge current: 150A (1.5C continuous)
Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
