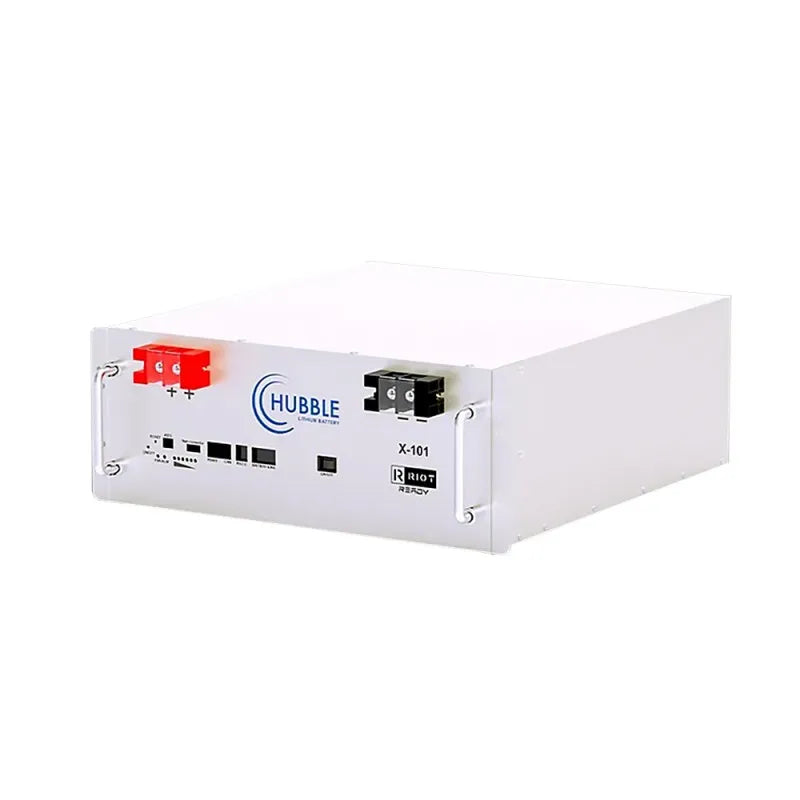

– Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack. – Parallel connection up to 15 packs with full communications – +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
Specifications
– Model Hubble: X-101 – Rated Capacity (5HR): 110 Ah – Nominal Voltage: 51.0 V – Discharge Ending Voltage: 42.0 V – Equalized Charge Voltage: 53.6 V – Max. Charging Current: 100 A – Max. Continuous Discharging Current: 100 A – Cell C Rating: 1.0 C – Weight: Approx. 42 Kg – Configuration: 4 U – Parallel: Parallel connection up to 15 packs with full communication – Dimensions: (W x D x H)mm 442mm x 495mm x 177.5mm – Maximum DC Limits: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232 – Cells: New Li-ion Prismatic Cells – Design Life: +/- 15 years – Cycle Life @ 1C: +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD – Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015 – Outer Package Material: White bake lacquer steel case – Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C – Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection – Warranty – 10 Years / 3000 Cycles
