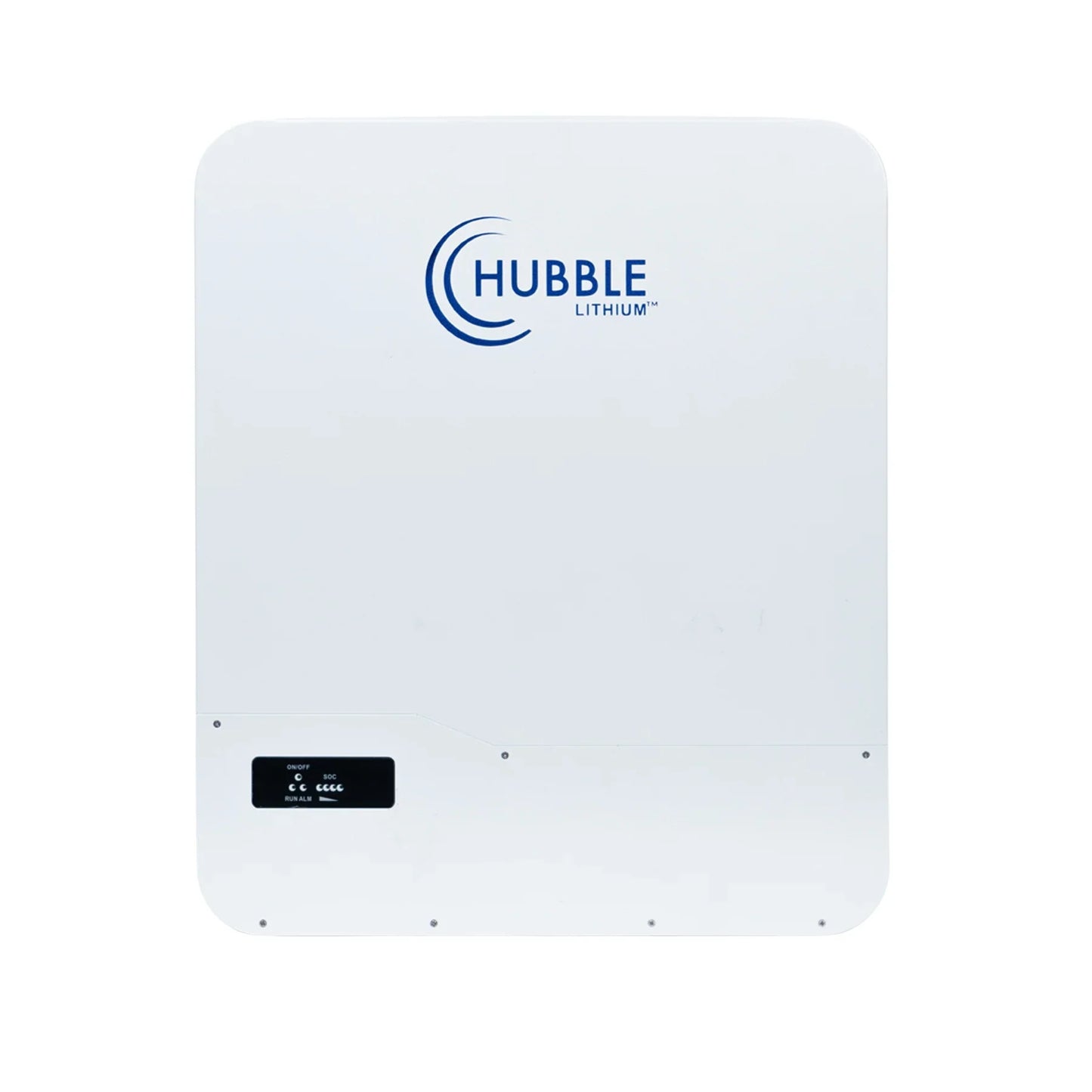

Description Hubble Lithium Battery Wall Mount 51.2V 5.12kWh 100Ah AM-5
Low self discharge • High cycle and service Life • 1C High performance lithium battery • Easy wall mount or shelf rack installation • Excellent high temperature performance • Advanced BMS with current limiting function • Compatible with most inverters and chargers • High energy density and conversion effi ciency • Complete with integrated Battery Management System • Hubble Cloudlink integration ready for cloud monitoring • Heavy duty side handles for easy handling and mounting on the wall • Built in protection for over-charge, over-discharge & over-temperature • CAN Bus, fully integrates and communicates with leading Inverter brands
Rated Capacity (5HR): 100Ah Nominal Voltage: 51.2V Design Capacity: 5.12KWH Equalized Charge Voltage: 55.2V Max. Continuous Charging Current: 100A Max. Continuous Discharging Current: 100A C Rating: 1C Hubble Battery AM-5 Weight: Approx. 51kg Monitoring: Cloudlink Parallel: Parrallel connection up to 8 packs with full communications Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm Ports: CAN-bus, Battery Link Ports Cells: Prismatic LiFePO4 Design Life: ± 15 Years Certification: CE IEC UN38.3 Outer Package Material: White Bake Lacquer Steel Case Operating Temperature Charging: -10°C to +50 °C Humidity: 15% to 75% Storage: 10°C to +50°C Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
