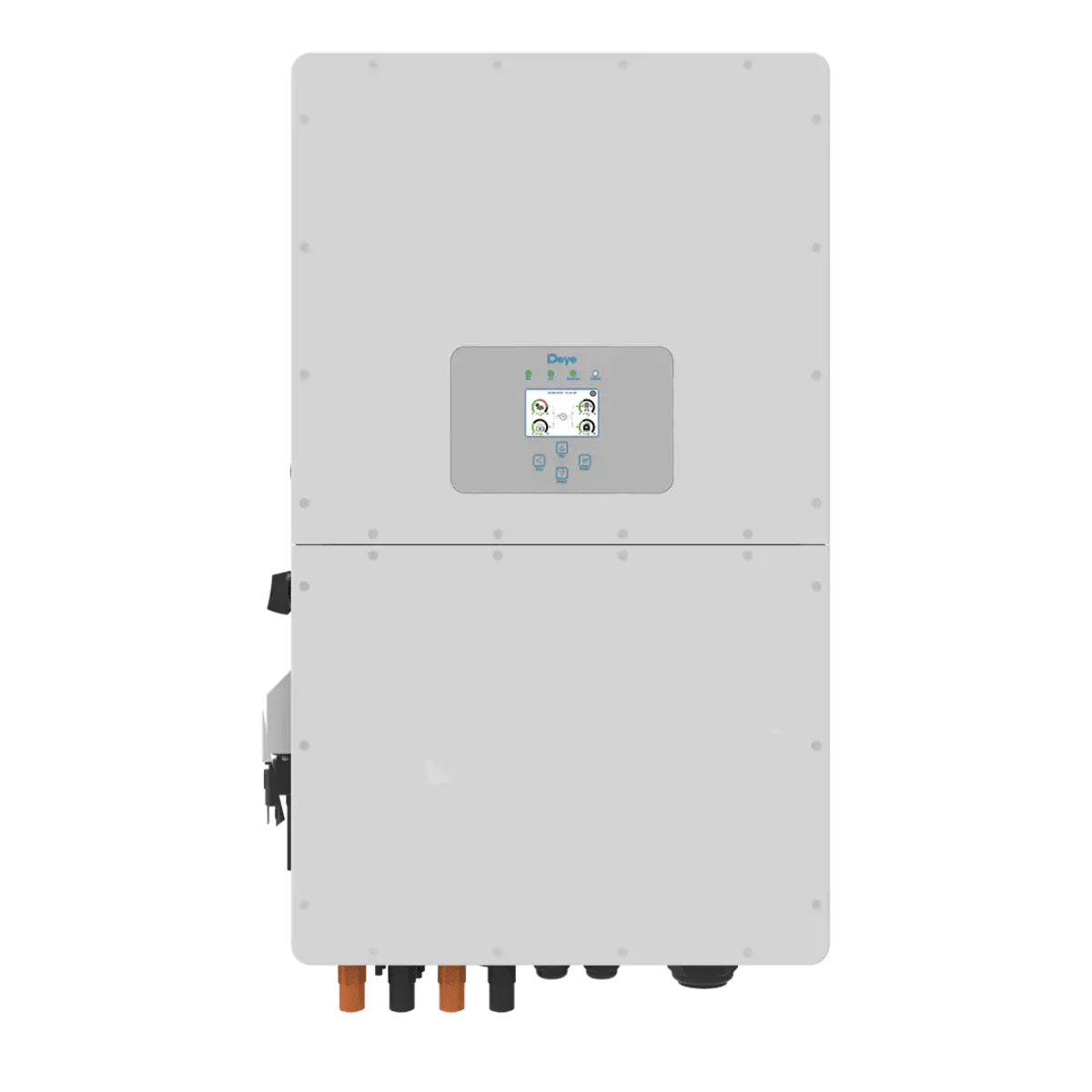

The Deye 50kW is a three phase hybrid inverter which utalises high voltage batteries, this ensures that system is safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.
It is equipped with RS485 / CAN port for battery communication
Features:
100% unbalanced output, each phase; Max. output up to 50% rated power
DC couple and AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Battery Input Data
Battery Type: Li-lon
Battery Voltage Range (V): 150-800V
Max. Charging Current (A): 50A+50A
Max. Discharging Current (A): 50A+50A
Number of battery input: 2
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 65000W.
Max. DC Input Voltage (V): 1000V
Start-up Voltage (V): 150V
MPPT Range (V): 200-850V.
Full Load DC Voltage Range (V): 450-850
Rated DC Input Voltage (V) 600
PV Input Current (A): 36A+36A+36A+36A
Max. PV ISC (A): 55A+55A+55A+55A
No. of MPPT Trackers: 4
No. of Strings Per MPPT Tracker: 2
AC Output Data
Rated AC Output and UPS Power (W): 50000W
Max AC Output Power (W): 55000W
Peak Power(off-grid): 1.5 times of rated power, 10 S
AC Output Rated Current(A): 75.8A
Max.AC Current(A): 83.3A
Max Continuous AC Pass-through(A): 150A.
Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Grid Type: Three Phase
DC injection current (mA): <0.5% 1n
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%
Protection
PV Arc Fault Detection: Integrated (Except European Type)
