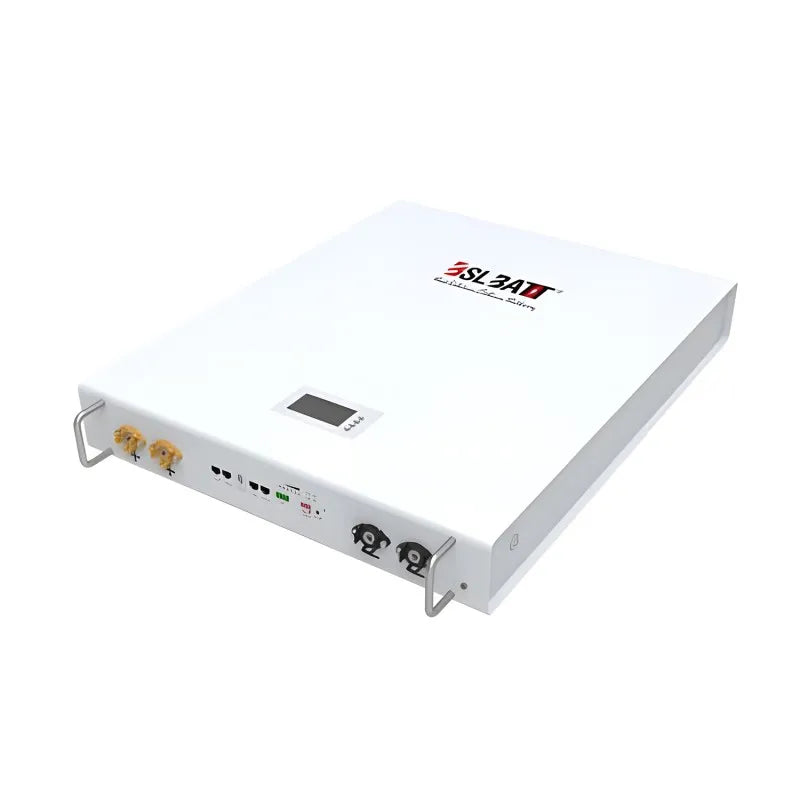

PowerLine is an ultra-thin wall-mounted battery that can be mounted directly to the wall with a simple snap-in installation. The battery modules utilize FPC technology to ensure more consistent quality and are certified by UL1973 to deliver up to 98% efficiency. In addition, this product can be cycled 6000 times at 100% DOD and still have 80% capacity. The battery can last up to 20 years for optimal performance and cost savings.
Features
– 3C peak value – Up to 81.9 kWh in Low Voltage Connection – Real-time monitoring system and remote debug – Non-toxic and non-hazardous cobalt-free LFP chemistry – Extended operating temperature -20°C to 60°C – The thinnest Home ESS ever built with just 90mm thickness – Certification: IEC62619, CE, UL1973, UN38.3 – The exceptional lifespan of up to 8000 cycles – Cycle one to several times per day – Extended warranty of up to 15 years
Application
– Back-up power – Self-consumption optimization – Off-grid power supply
Specifications
– Model: PowerLine 5 – Nominal Voltage: 51.2V – Nominal Capacity: 100Ah – Compound Mode: 1P16S – Charging Voltage: 58.4V – Charge Current: Continuous Charging: 50A, Maximum Charge: 100A – Discharge Current: Continuous Discharging: 100A – Factory Voltage: 50.4V – 53.6V – Self-discharge Rate: ≤ 2.5% per month – Mode of Equilibrium: Passive Equilibrium – IP Level: IP22 – Temperature of Charge: 0°C to +65°C – Temperature of Discharge: -20°C to +65°C – Dimensions: 670mm x 540mm x 90mm ±1mm – Weight: 50kg ±1kg
