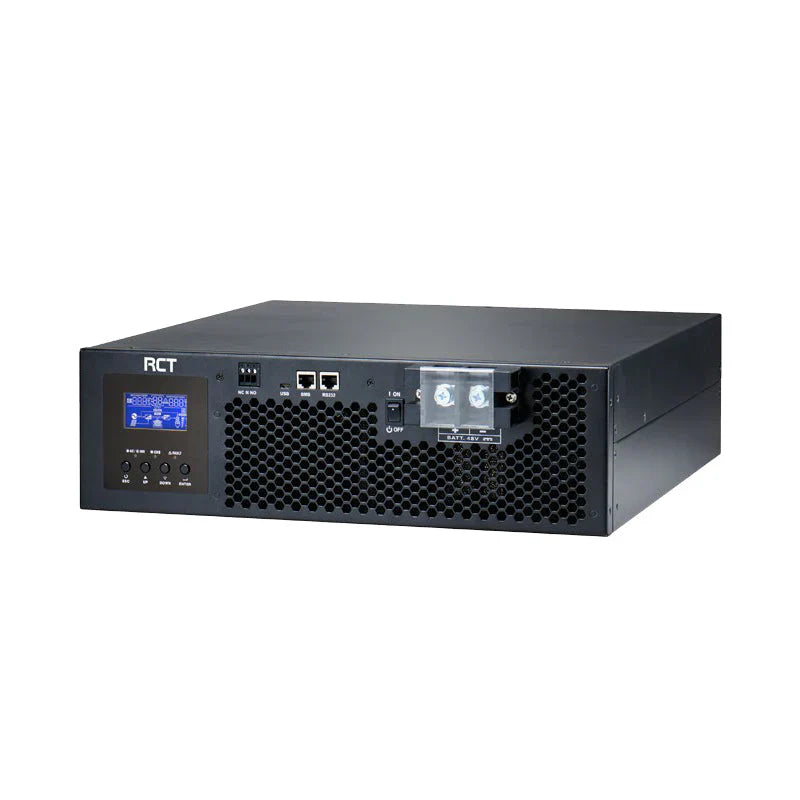

RCT Axpert King 5K48 5kVA 5kW 48V Rack Mount Hybrid Inverter

Features

• Zero transfer time to protect mission-critical loads such as servers and ATM.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Configurable AC/PV output usage timer and prioritization.
• Pure sine wave solar inverter.
• Selectable high power charging current.
• Wide DC input range.
• Auto restart while AC is recovering.
• Smart battery charger design for optimized battery performance.
• Overload and short circuit protection.
• Optional parallel operation up to 9 units.

Technical Specifications

• Model: RCT-AXKINGRM-5K48V.
• Rated Power: 5000VA/5000W.
• Parallel Capability: Up to 9 units.

Input

• Voltage: 230 VAC.
• Voltage Range: 110-280 Vac.
• Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

• AC Voltage Regulation: 230 Vac ± 5%.
• Output THDv: <3% for linear load, <8% for non-linear load.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode.
• Transfer Time: 0 ms.
• Waveform: Pure sine wave.

Battery

• Battery Voltage: 48 Vdc.
• Floating Charge Voltage: 54 Vdc.
• Overcharge Protection: 66 Vdc.

Solar Charger & AC Charger

• Solar Charger Type: MPPT.
• Maximum PV Array Open Circuit Voltage: 145 Vdc.
• Maximum PV Array Power: 4000 W.
• MPP Range @ Operating Voltage: 60 ~ 115 Vdc.
• Maximum Solar Charge Current: 80 A.
• Maximum AC Charge Current: 60 A.
• Maximum Charge Current: 140 A.

Physical

• Dimension, D x W x H (mm): 366.3 x 438 x 130.8.
• Net Weight (kgs): 15.
• Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.
